480C-U Black
  • 480C-U Black
  • 480C-U Black
  • 480C-U Black
  • 480C-U Black
  • 480C-U Black
  • 480C-U Black
  • 480C-U Black

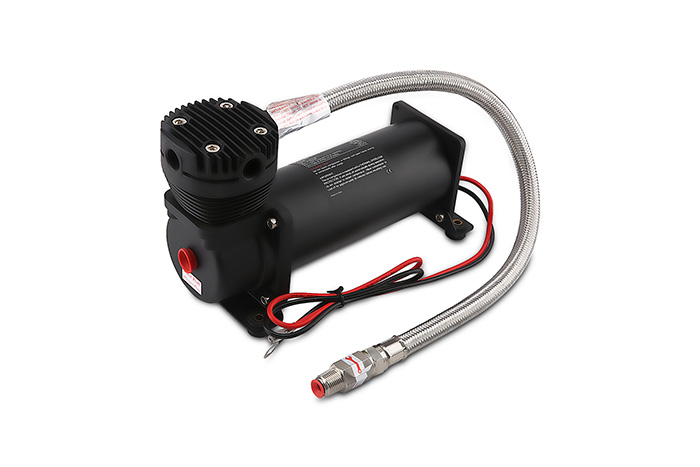

480C-U Black

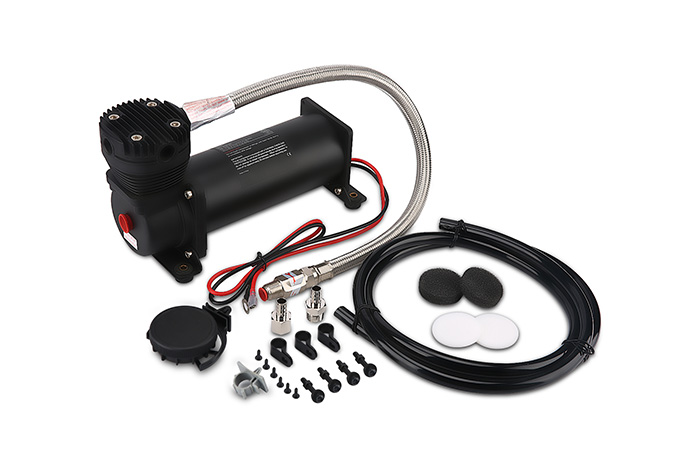

Included Parts

- Mounting hardware (nuts, bolts, locking washers)

- Vibration isolators

- Remote mount air filter assembly

- Two replacement air filter elements

- Air line for remote mount air filter installation

- Stainless steel braided leader hose

- Check valve

服务热线

13886501872
13809667059

Specifications

12-Volt

Permanent Magnetic Motor

Duty Cycle: 100% @ 100 PSI

Max. Working Pressure: 200 PSI

Max. Amp Draw: 33 Amps

Max. Flow Rate: 72L/Min (2.54CFM)

Dimensions: 254*100*171.5mm

Net Weight: 9.75lbs

Max. Intermittent Pressure : 250

480C-U(DC-12V)
PSI LPM Amp(s)
0 72 14.2
20 65 17.6
40 58 20.6
60 54 26.2
80 50 28.9
100 47 30.1
120 42 31.7
140 40 32.8
150 38 33
160 34 33.1
200 30 32.5


Standard Compressor Features:

- IP 67 Rated

- Gearless, direct-driven electric motors

- Oil-less design requires no maintenance (besides filter inspection/replacement)

- High performance and highly reinforced PTFE piston ring

- Anodized piston cylinder for increased wear protection

- Precision, high speed, durable bearings for increased piston & motor life

- Sealed motor housing for moisture resistance

- Environmental seals where electrical connections enter motor housing

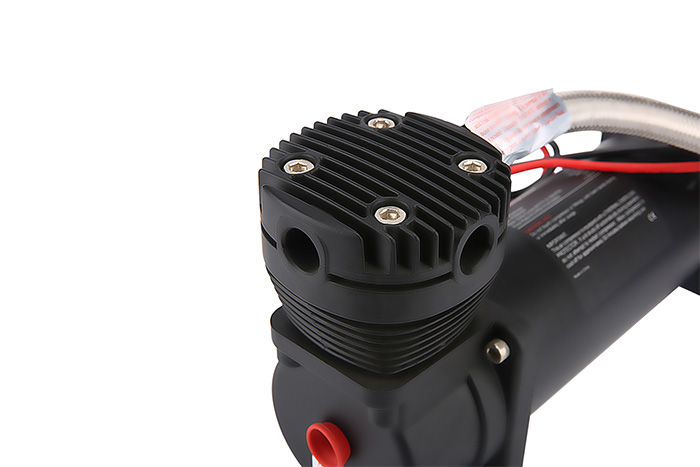

- Efficient, oversized heat sink head assembly for increased heat dissipation, duty cycle & performance

- High performance check valve to eliminate restart pressure on head and piston

- Direct or remote mount option air filter assembly

- Replacement air filter elements (filtration to 10 microns)

- Stainless steel braided leader hose

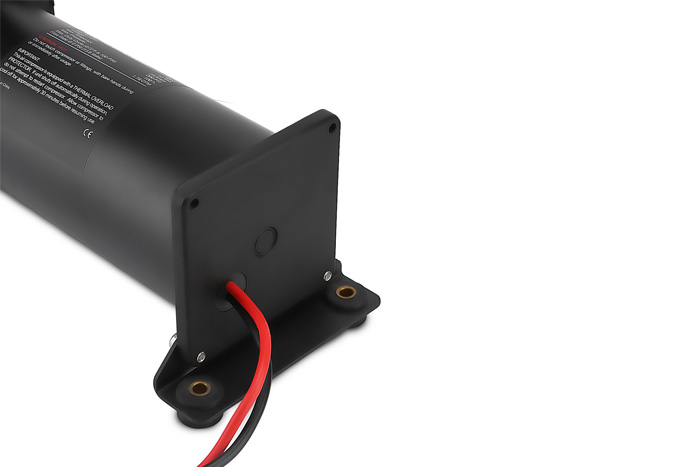

- Heavy duty mounting feet (omega and standard styles, as applicable)

- Reinforced vibration isolators for safe & quiet operation

- Mounting hardware (bolts, washers, locking washers, nuts)

- Thermal Overload Protection  to protect compressor from overheating during normal operational duty cycle

- Maximum operating temperature of 158° F

- Minimum operating temperature of -40° F (unless otherwise noted)

- Wire terminal ends to simplify installation (ring ground terminal, spade positive lead terminal)
