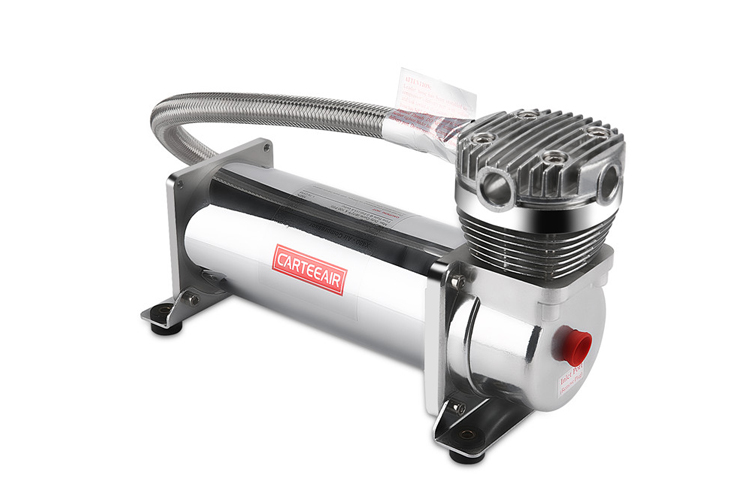

480C Chrome

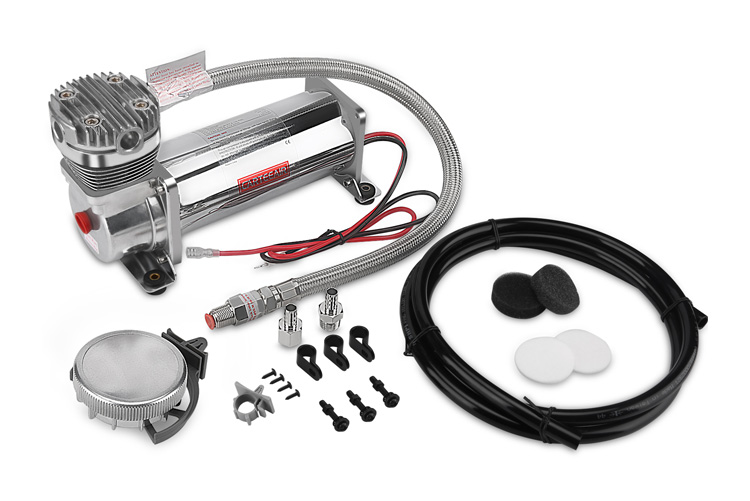

Included Parts Specifications
12-Volt
- Mounting hardware (nuts, bolts, locking washers) Permanent Magnetic Motor
- Vibration isolators Duty Cycle: 100% @ 100 PSI
- Remote mount air filter assembly Max. Working Pressure: 200 PSI
- Two replacement air filter elements Max. Amp Draw: 23 Amps
- Air line for remote mount air filter installation Max. Intermittent Pressure: 300PSI
- Stainless steel braided leader hose Max. Flow Rate: 50L/Min (1.76CFM)
- Check valve Dimensions: 261 x 106 x 167.7mm

Service Hotline

13886501872
13809667059


Performance Data
PSI CFM A BAR LPM A
0 1.76 10 0 50 10
10 1.66 12 1 46 13
20 1.59 14 2 43 14
30 1.52 15 3 40.5 17
40 1.45 16 4 38.5 18
50 1.41 17 5 35.5 19
60 1.34 18 6 33 19
70 1.27 18 7 31.5 19
80 1.2 19 8 29.5 20
90 1.16 19 9 27 20
100 1.13 19 10 25 19
110 1.06 20 11 23 19
120 1.02 20 12 20.5 19
130 0.95 20 13 18 18
140 0.92 19 14 15.5 18
150 0.85 19
160 0.81 19
170 0.74 19
180 0.7 19
190 0.63 18
200 0.56 18 *Supply Voltage: 13.8 Volts
Fill Rates 11.jpg
2.5 Gallon Tank Fill Rate
0 To 145 PSI 2 Min. 29 Sec.
110 To 145 PSI 57 Sec.
0 to 200 PSI 5 Min. 02 Sec.
165 to 200 PSI 1 Min. 23 Sec.
5.0 Gallon Tank Fill Rate
0 To 145 PSI 6 Min. 02 Sec.
110 To 145 PSI 1 Min. 55 Sec.
0 to 200 PSI 10 Min. 08 Sec.
165 to 200 PSI 2 Min. 20 Sec.
