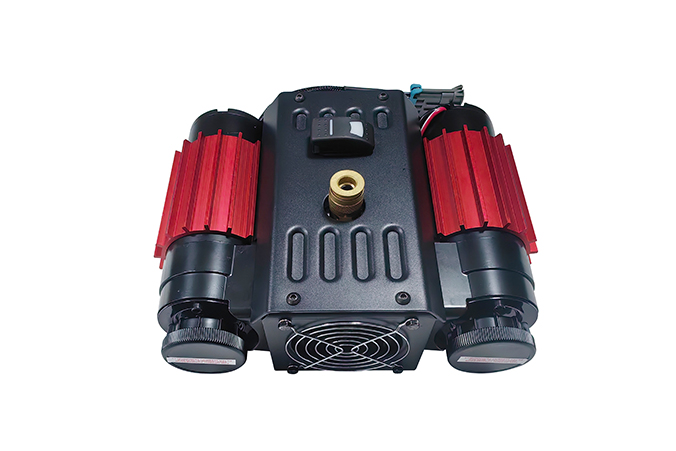

TCK-400D Twin Air Compressor

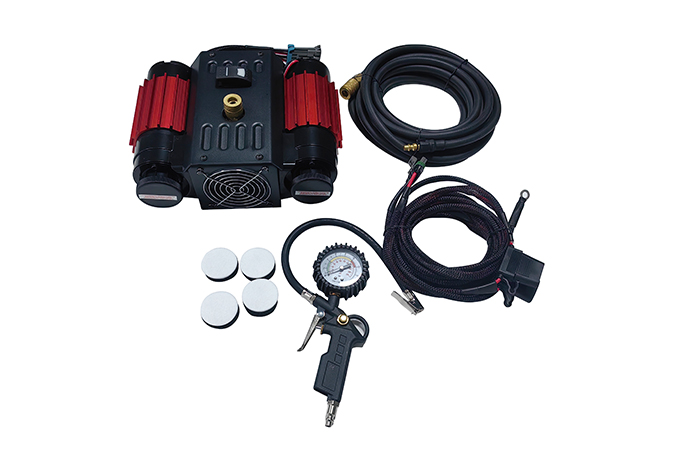

Included Parts：

Mounting hardware (nuts, bolts, locking washers)

Vibration isolators

Remote mount air filter assembly

Two replacement air filter elements

Stainless steel braided leader hoses

With 70A relay

Check valves

Specifications：

Voltage: 12V DC

Permanent Magnetic Motor

Duty Cycle: 100% @ 100 PSI

Max. Working Pressure: 200 PSI

Max. Amp Draw: 43 Amps

Max. Intermittent Pressure: 250PSI

Max. Flow Rate: 90LPM (3.18CFM

Consult

Service Hotline

13886501872
13809667059

Electrical Specifications:

Voltage: 12V DC

Current Draw (0psi): 49Amp

Current Draw (30psi): 59A

Max. Current: less than 70A

Max. Pressure: 200PSI

Fuse Type Rating: 2xANS 40A

Relay: 2 x 80A

IP Rating: IP54

Motor Thermal Cut-off: 105℃

Dimensions (LxWxH, mm): 299*233.7*132.4

Weight: 10.45kg (compressor only); 12.45kg (including compressor and accessories)

Power Cord/Air Hose Length: 4.5 Meters/7.6Meters

Pressure Switch Setting: 90psi On, 120psi Off

Safety Relief Valve Opening Pressure: 155psi

Performance:

Flow Rate(0psi): 170L/Min (5.8CFM)

Flow Rate(30psi): 132L/Min (4.66CFM)

Duty Cycle (80psi, 60 minutes@23℃): 100%

TCK-400D (DC-12V)
PSI	LPM	CFM	Amp(s)
0	165	5.83	49.4
10	160	5.65	52.2
20	145	5.12	55.6
30	132	4.66	59.1
40	130	4.59	60.8
50	120	4.24	63.6
60	110	3.88	64.8
70	100	3.53	65.8
80	95	3.35	66.8
90	90	3.18	66.5
100	80	2.83	66
110	75	2.65	64.8
120	65	2.3	64.2
130	60	2.12	62.8
140	55	1.94	62.2
150	50	1.77	60.1
Pressure Switch Setting: 90psi On, 120psi Off
Tire Inflation Rate (P275/60R20,0一35psi): 2Min.
