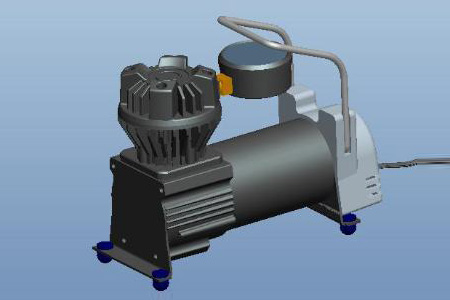

DC-12VHEAVY DUTY TIRE INFLATOR

Features：
1.1. Heavy duty, gearless, direct drive powerful motor
1.2. Oil-less design, maintenance free.
1.3. Compact, lightweight design so you can take it anywhere.
1.4. Stainless steel flapper valve.
1.5 High performance PTFE piston ring.
1.6 With inflate/deflate valve.
1.7. Easy to read gauge.
1.8. 4ft heavy duty rubber hose.
1.9. 16.5ft power cord with inline fuse holder and cigarette lighter plug. (With 15A fuse)
1.10. Automatic reset thermal overload protector.
1.11 Anodized aluminum alloy cylinder
1.12 Special design for inflating big vehicle tires.

Consult

Service Hotline

13886501872
13809667059

Product Description

Voltage	DC-12V
Max. Ampere Draw	15A
19570R14 Tire Inflation Rate (0-2.1kg/cm²)	2Min.55Sec.
Max. Pressure	150psi(10.3bar)
Flow Rate	1.41CFM@0psi 40.0LPM@0psi
Max Continuous Use （@30psi & 23C)	30MIN
Noise	65 dB
Power Cord Length	5.03M
Air Hose Length	1.22M
Net Weight(kg)	2.5 kg
Unit Dimensions (L * W * H, mm	20783168mm
