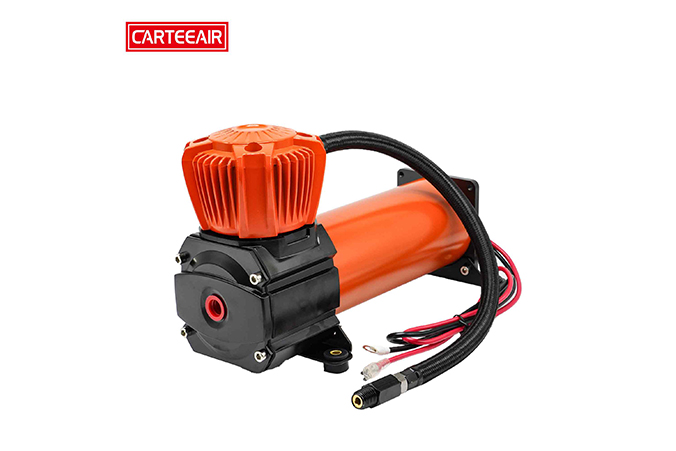

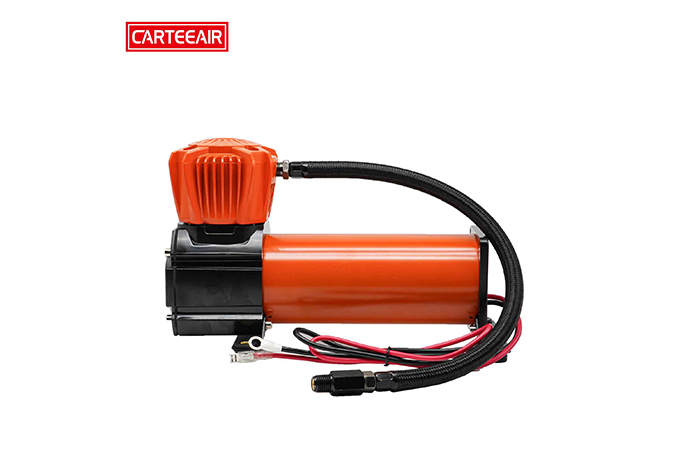

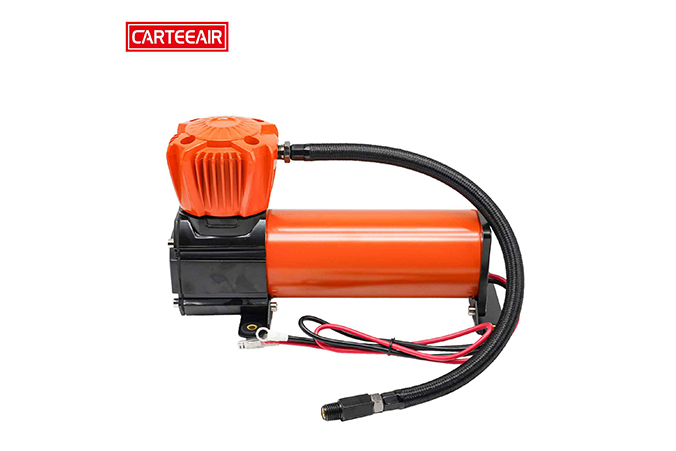

Hardmount Air Compressor

Model No. X480U

Included Parts

- Mounting hardware (nuts, bolts, locking washers)

- Vibration isolators

Air filter assembly

- Two replacement air filter elements

- Stainless steel braided leader hose

- Check valve

Specifications

12-Volt

Permanent Magnetic Motor

Duty Cycle: 100% @ 100 PSI

Max. Working Pressure: 200 PSI

Max. Amp Draw: 33 Amps

Max. Flow Rate: 72L/Min (2.54CFM)

Dimensions: 254*100*171.5mm

Net Weight: 9.75lbs

Max. Intermittent Pressure : 250PSI

Standard Compressor Features:

●IP 67 Rated

●Gearless, direct-driven electric motors

●Oil-less design requires no maintenance

●High performance and highly reinforced PTFE piston ring

●Anodized piston cylinder for increased wear protection

●Precision, high speed, durable bearings for increased piston & motor life

●Sealed motor housing for moisture resistance

●Efficient, oversized heat sink head assembly for increased heat dissipation, duty cycle & performance

●Stainless steel braided leader hose

●Reinforced vibration isolators for safe & quiet operation

●Mounting hardware (bolts, washers, locking washers, nuts)

●Thermal Overload Protection to protect compressor from overheating during normal operational duty cycle

●Wire terminal ends to simplify installation (ring ground terminal, spade positive lead terminal)
