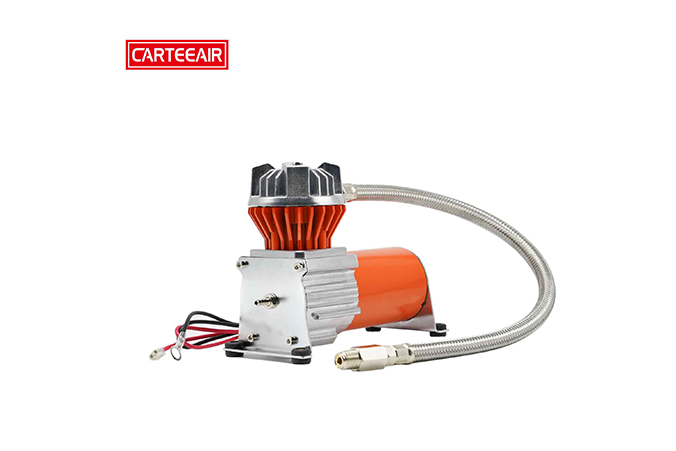

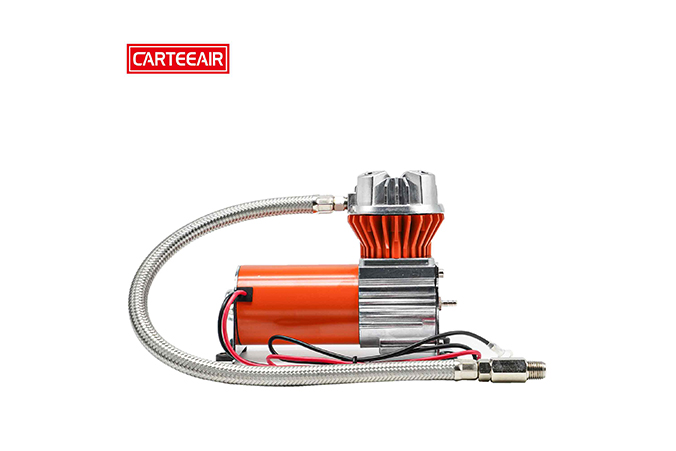

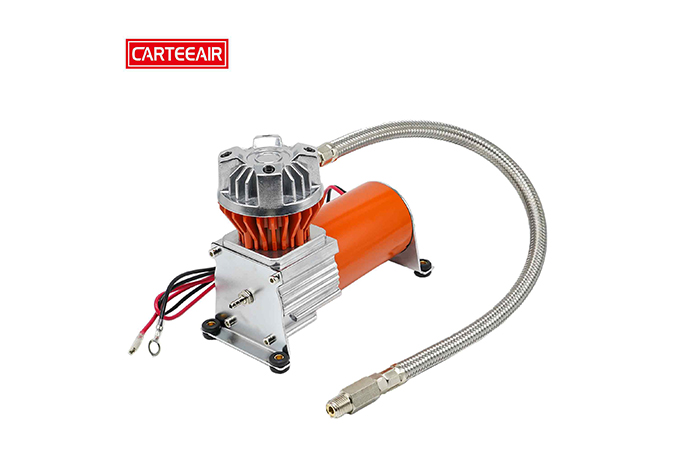

Perfect Compressor for Air Horn.

Specifications:

duty cycle: 15% @ 100 psi

flow rate: 1.34 cfm @ 0 psi

max working pressure: 130 psi

intermittent pressure: 245 psi

volt: 12v

amp: 16a

ingress protection rating: ip54

cylinder: Φ30mm

Accessories:

mounting hardware

vibration isolator

remote mount air filter assembly

stainless steel braided leader hose

check valve

Features:

●IP 54 Rated

●Gearless, direct-driven electric motors

●Oil-less design requires no maintenance (besides filter inspection/replacement)

●High performance and highly reinforced PTFE piston ring

●Anodized piston cylinder for increased wear protection

●Precision, high speed, durable bearings for increased piston & motor life

●Sealed motor housing for moisture resistance

●Environmental seals where electrical connections enter motor housing

●Efficient, oversized heat sink head assembly for increased heat dissipation, duty cycle & performance

●High performance check valve to eliminate restart pressure on head and piston

●Direct or remote mount option air filter assembly

●Replacement air filter elements (filtration to 10 microns)

●Stainless steel braided leader hose (PTFE lined where applicable)

●Heavy duty mounting feet (omega and standard styles, as applicable)

●Reinforced vibration isolators for safe & quiet operation

●Mounting hardware (bolts, washers, locking washers, nuts)

●Thermal Overload Protection (T.O.P. equipped compressors only) to protect compressor from overheating during normal operational duty cycle

●Maximum operating temperature of 158° F

●Minimum operating temperature of -40° F (unless otherwise noted)

●Wire terminal ends to simplify installation (ring ground terminal, spade positive lead terminal)
