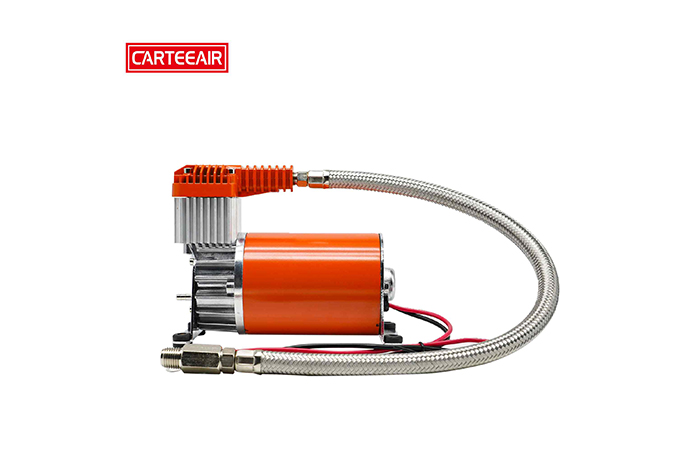

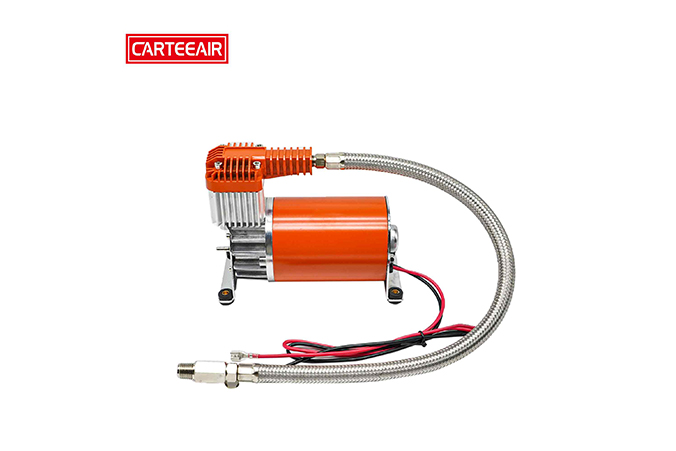

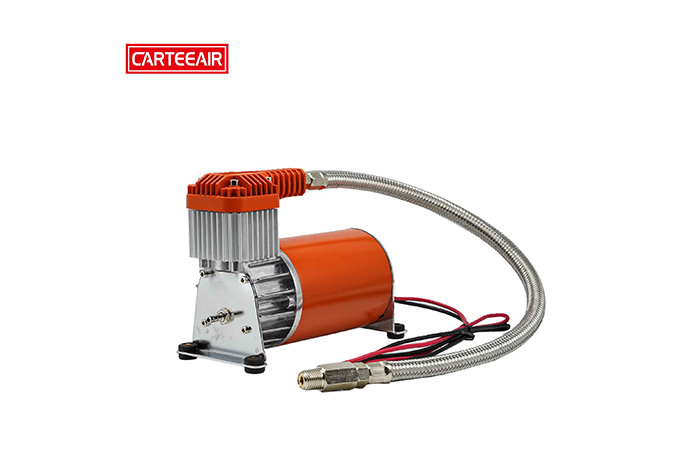

X275 Compressor features include a stainless steel braided leader hose
with 1/4”NPT swivel male fitting hose end and rubber isolated
mounting feet as well as insulated electric terminals.
Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.
13886501872
13809667059
Included Parts:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 25% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Intermittent Pressure: 350 PSI
- Max. Air Tank Size: 2.5 Gallon
- Max. Amp Draw: 20 Amps
- Dimensions: 6.5"L x 3.5"W x 4.5"H
- Net Weight: 5.20 lbs.
| Performance Data | |||||
| PSI | CFM | A | BAR | LPM | A |
| 0 | 2.03 | 10 | 0 | 57.5 | 10 |
| 10 | 1.17 | 12 | 1 | 32 | 13 |
| 20 | 1.11 | 13 | 2 | 30 | 14 |
| 30 | 1.04 | 15 | 3 | 28.5 | 16 |
| 40 | 1.01 | 15 | 4 | 26.5 | 16 |
| 50 | 0.97 | 16 | 5 | 24.5 | 17 |
| 60 | 0.92 | 16 | 6 | 22.5 | 17 |
| 70 | 0.88 | 17 | 7 | 21.5 | 18 |
| 80 | 0.83 | 17 | 8 | 20 | 18 |
| 90 | 0.79 | 17 | 9 | 18.5 | 18 |
| 100 | 0.76 | 18 | 10 | 17 | 17 |
| 110 | 0.72 | 18 | * Supply Voltage: 13.8 Volts | ||
| 120 | 0.69 | 18 | |||
| 130 | 0.65 | 18 | |||
| 140 | 0.62 | 17 | |||
| 150 | 0.57 | 17 | |||
| Tanks Fill Rate: | |
| 1.0 Gallon Tank | Fill Rate |
| 0 to 105 PSI | 1 min. 05 sec. |
| 85 to 105 PSI | 14 sec. |
| 0 to 145 PSI | 1 min. 39 sec. |
| 110 to 145 PSI | 28 sec. |
| 2.5 Gallon Tank | Fill Rate |
| 0 to 105 PSI | 2 min. 29 sec. |
| 85 to 105 PSI | 36 sec. |
| 0 to 145 PSI | 4 min. 07 sec. |
| 110 to 145 PSI | 1 min. 28 sec. |
|
|
|
