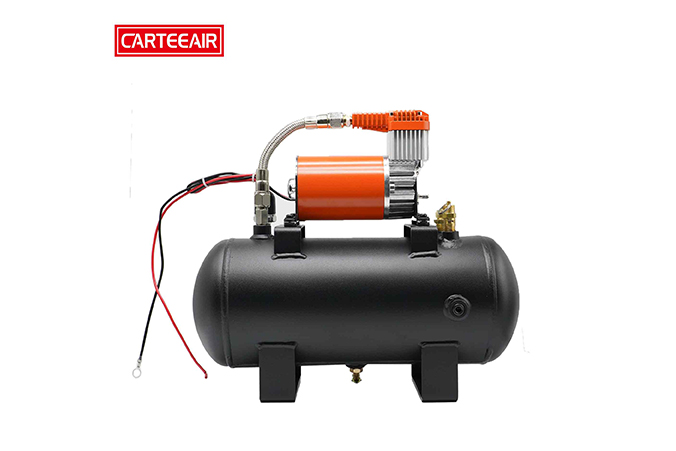

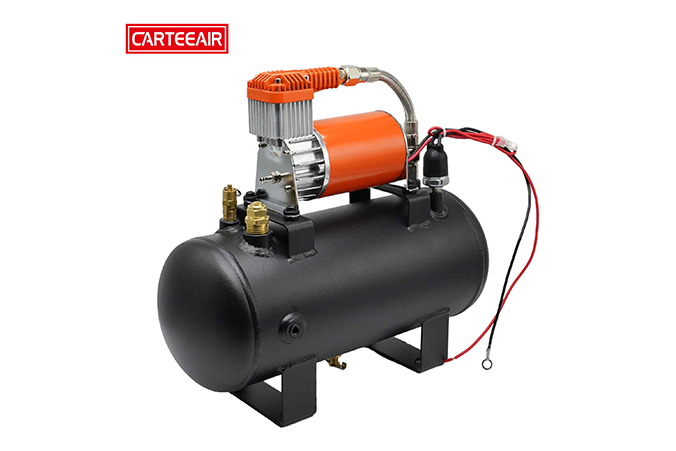

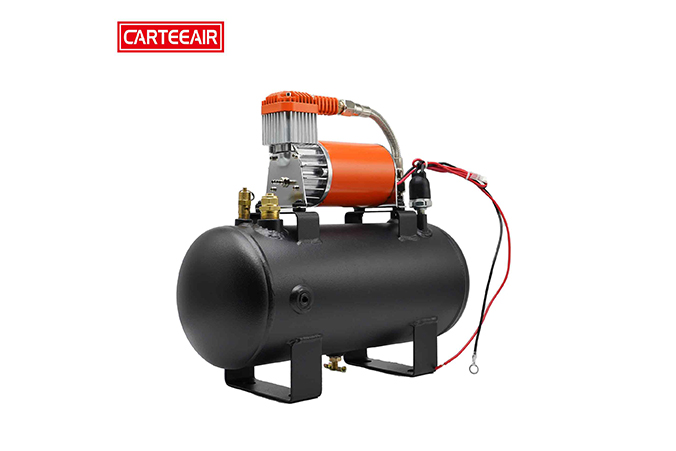

120 PSI Fast-Fill Air Source Kit

P/N X275ASK – 120 PSI / 2.03 CFM

120 PSI Air Source Kits come with a low amp-draw, 25% duty cycle, X275 compressor mounted on a 150 PSI-rated 1.5 gallon air tank with 5 ports. 120 PSI Air Source kits come with a pre-wired 90 PSI on / 120 PSI off pressure switch. The 120 PSI Air Source Kit comes complete with a 1/4” NPT brass drain cock, 1/4” NPT ASME coded and certified safety valve, 1/2” NPT port compression fitting for 3/8” (I.D.) air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.

Consult

Service Hotline

13886501872
13809667059

Product Description

FEATURES

– X275 Air Compressor

– Thermal Overload Protector

– 1.5 Gallon Air Tank

– Pressure Switch (90 PSI On / 120 PSI Off)

– Safety Valve (145 PSI)

– Drain Cock

– Leader Hose with Check Valve

SPECIFICATIONS

– 12-Volt

– Permanent Magnetic Motor

– Duty Cycle: 25% @ 100 PSI

– Max. Working Pressure: 120 PSI

– Max. Amp Draw: 20 Amps

– Ingress Protection Rating: IP54

– Dimensions: 15.2″L x 5.9″W x 12.8″H

– Net Weight: 15.65 lbs.

PERFORMANCE DATA
PSI	CFM	A	BAR	LPM	A
0	2.03	10	0	57.5	10
10	1.17	12	1	32	13
20	1.11	13	2	30	14
30	1.04	15	3	28.5	16
40	1.01	15	4	26.5	16
50	0.97	16	5	24.5	17
60	0.92	16	6	22.5	17
70	0.88	17	7	21.5	18
80	0.83	17	8	20	18
90	0.79	17	9	18.5	18
100	0.76	18	10	17	17
110	0.72	18
120	0.67	18	* Supply Voltage: 13.8 Volts

FILL RATES
1.5 GALLON TANK	FILL RATE
0 to 120 PSI	2 min. 10 sec. (±10 Sec.)
90 to 120 PSI	35 sec. (± 5 Sec.)
